Denon's AVR4310CI breaks new ground for Denon in the A/V receiver category. Its heart and soul is all Denon for the home theater enthusiast. It features Audyssey's newest technology, Dynamic Surround Expansions, boasts 6 HDMI inputs and 2 outputs, and has discrete iPod and USB player inputs. The AVR4310CI also pushes the envelope of connectivity with an Ethernet port that provides for unprecedented convergence flexibilities. Add to that XM Satellite Radio functionality and analog-to-HDMI video conversion, with video scaling to streamline video switching and to provide for maximum content quality for every source in your system.

Audyssey DSX enhances the surround sound field

Audyssey's newest technology, Dynamic Surround Expansion, is a scalable system that can adapt to the practical needs of the user. Dynamic Surround Expansion provides a more enveloping soundstage by deriving front height or front wide width channels for the most immersive surround sound experience. The first level of surround stage enhancement comes from adding the Wide channels. The second level comes from adding the Height channels. DSX automatically reconfigures its processing to optimize surround rendering over any number of available speakers beyond 5.1. The result is an incredibly natural soundscape with an immersive quality.

Connect and control your iPod

The AVR4310CI provides two terminals for connecting your iPod: one is located behind the trap door on the front panel and the other is on the back panel. A USB terminal that lets you connect your USB-compatible portable music player is provided behind the trap door on the front panel. You can connect the player to this terminal and play the MP3 or WMA (Windows Media) files directly through your AVR4310CI system.

Video up/down conversion

The AVR4310CI includes a video up/down conversion function that allows the unit to be connected to the video monitor via a single cable regardless of the video input signal's format as follows: 1) Composite video signals are converted to HDMI, component video, and S-video; 2) S-video signals are converted to HDMI, component video and composite video; 3) Component video signals are converted to HDMI, composite video and S-video (output signal up-converted to HDMI retains the resolution of the input signal). The AVR4310CI uses a time base corrector (TBC) in converting composite video and S-video signals to component video to suppress jitter in the video signal during playback.

Video DAC and component switching

A high-speed, high-accuracy 12-bit/216 MHz video DAC is used in the video circuitry for component video, S-video, and composite video signals. This DAC enhances the reproducibility of delicate-level video signals, allowing high-definition video to be played back with greater fidelity to the original images. In addition, noise shaped video (NSV) technology improves video S/N for greater signal linearity. The AVR4310CI is equipped with three sets of component video inputs and one output. These component video circuits achieve sharp HDTV video quality in a frequency range up to 100 MHz.

Powerful converters

Three of the latest 32-bit floating point DSPs are used in the AVR4310CI for decoding. The latest high-accuracy 24-bit/192-kHz D/A converter has been employed for the audio DAC, while a high-performance A/D converter of 24-bit/192-kHz quality has been used to significantly boost S/N and dynamic range. The AVR4310CI also utilizes 'AL24 Processing Plus', the latest technology for high sound quality giving you the most bang for your buck available in an audio system. Package all that with DENON Link (enabling high-speed, high-grade digital signal transmission), and a large-output power amp section and power supply configuration for stable high-power output, and you're ready to rock 'n roll.

Getting the best sound

A new auto set-up and Room EQ, featuring MultEQ from Audyssey, gives you overall listening area support using the supplied microphone. You'll quickly get just the right set up for your listening area. With configurable center, surround and surround back amplifiers, you have some options for multi-room use. For example, you could enjoy 5.1-channel theater sound in the main room and a monaural environment in a second and third room. The AVR4310CI also provides full support for the most advanced surround playback formats. In addition to the powerful THX, THX Surround EX and THX Ultra2 post processing modes, you get support for Dolby Digital EX, Dolby Digital, Dolby Pro Logic IIZ and IIx, DTS-ES, DTS 96/24, DTS Neo:6 and HDCD. The AVR4310CI is also XM Satellite ready with an optional "connect and play" antenna. Of course, you also need a subscription to XM services.

Connectivity/Expandability

The AVR4310CI is equipped with an Ethernet port that lets you build various types of network environments. You can use these network environments to take advantage of three new home audio network functions. The Audio Media Client function lets you stream audio over the network from a Music Server. This network connection uses two standard technologies: The Designed to DLNA (DLNA: Digital Living Network Alliance) Guidelines, and Windows Media Connect. Supported audio formats are MP3, WAV (LPCM), and WMA. Internet Radio is a system that lets you hear radio broadcasts from stations on the Internet. A wide variety of stations, both large and small and some which are operated by individuals, can be found on the Internet. Until now, radio stations could only be heard if you were within listening range of their radio waves, but with Internet Radio, you can listen to broadcasts from all over the world. The list of stations that the AVR4310CI uses comes from the vTuner radio station database that has been customized for Denon. Finally, A/V Receiver Network Setup (Web Control) lets you set up and control the A/V receiver over a network using Internet Explorer on a PC. The AVR4310CI's Ethernet port also supports serial controls that use Crestron and others.

New DDSC-digital

The new DDSC (Dynamic Discrete Surround Circuit)-Digital is a high-quality surround sound reproduction circuit designed for Denon, and forms the core of the design concept that Denon pursues for all its A/V amps: to faithfully reproduce the original intent of content producers. Denon has succeeded in developing a fully discrete design for the new DDSC-Digital in which high-performance ICs are used in independent blocks to form a signal processor that reproduces surround sound, and the discrete design ensures that all channels are endowed with identical response and quality of sound.

Included with purchase

Remote control, setup microphone, detachable power cord.

Comparison Specifications

• Dolby Digital Plus, Dolby Digital Surround EX, Dolby PLIIz, Dolby Pro Logic IIx, dts ES Discrete 6.1, dts ES Matrix 6.1, dts Neo:6, dts 96/24 5.1
• 130 watts x 7 channels (8 ohms, 20Hz - 20kHz, 0.05 Percent THD), 170 Watts (6 ohms, 1kHz)

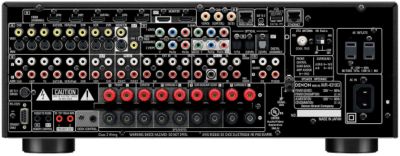

• 6 HDMI inputs/2 outputs, 3 sets component video inputs/1 output
• 6 digital audio inputs (3 optical, 3 coaxial), 1 digital audio output (optical), 2 analog audio REC outputs
• 8 pre-amp outputs, 3 audio preouts (Zone2/Zone3/7.1ch), 8ch analog EXT. input, 10 analog audio inputs (tuner included)
• 7 composite video inputs/4 outputs incl. monitor, 7 S-video inputs/3 outputs inc. monitor, iPod connection terminals, 2 USB ports, phono input, headphone output
• New 32-bit floating point DSP
• HD-radio tuner built-in: Sirius ready, Rhapsody, FM/AM tuner antenna (56 station auto-preset memory tuning), microphone port

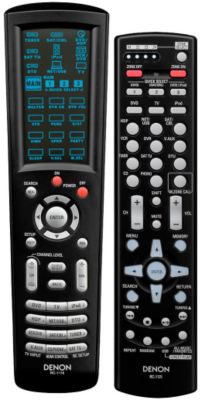

• Preprogrammed / learning EL remote controller for easy operation (Y/RC-1116 + Multi-zone remote RC-1121), GUI menu support

Additional Specifications

• New DDSC (Dynamic Discrete Surround Circuit) -Digital HD
• Audsyssey DSX processing, HDMI video switching function, HDMI Deep Color support-36bit, HDMI xvYCC color space support, HDMI SACD support
• DENON Link (SACD ready) 4th with flow control, enables high-speed, high-grade digital signal transmission
• Front panel system setup control, personal memory plus, system setup/surround parameters lockout, relay-controlled protection
• Audyssey MultEQ XT room correction w/ up to 8 position setup, Audyssey Mult EQ Pro calibration, auto set-up and room EQ, auto/manual room equalization
• Video conversion analog to HDMI scaling 480p, 720p, 1080i, 1080p capable of output to HDMI port / analog to digital conversion: 24-bit/96kHz Burr-Brown PCM-1804
• High-speed, high-accuracy 12-bit/216-MHz video DAC
• RJ-45 ethernet port and RS-232C terminal for external 3rd party control systems / PC setup and control capability
• Stabilized, independent power supplies for each circuit
• Chassis construction to suppress internal/external vibration

Manufacturer Specifications

• Pure direct mode, pre-amp with variable gain volume
• Configurable surround back amplifiers
• 3 source and zone capability
• Variable subwoofer crossover switching (40/60/80/90/100/110/120/150/200/250 Hz)
• Video game mode, wide screen 7.1 mode; Surround modes: mono movie, rock arena, matrix, jazz club,dual surround mode spkr.selector, virtual surround mode for 2 speakers/headphones
• Auto surround back channels ON function, for auto-detection of supporting sources
• On-screen display, front panel system setup control, system surround parameters lockout
• 2 x 150mA +12v trigger outputs (assignable)
• Muting level settings, 3 user mode buttons
• Large-output power amp section and power supply configuration

Dimensional Specifications

• Dimensions: 17.1" W x 6.7" H x 16.9" D
• Weight: 34.8 lbs

Denon AVR4310CI Warranty Details

Two-year limited parts and labor warranty
